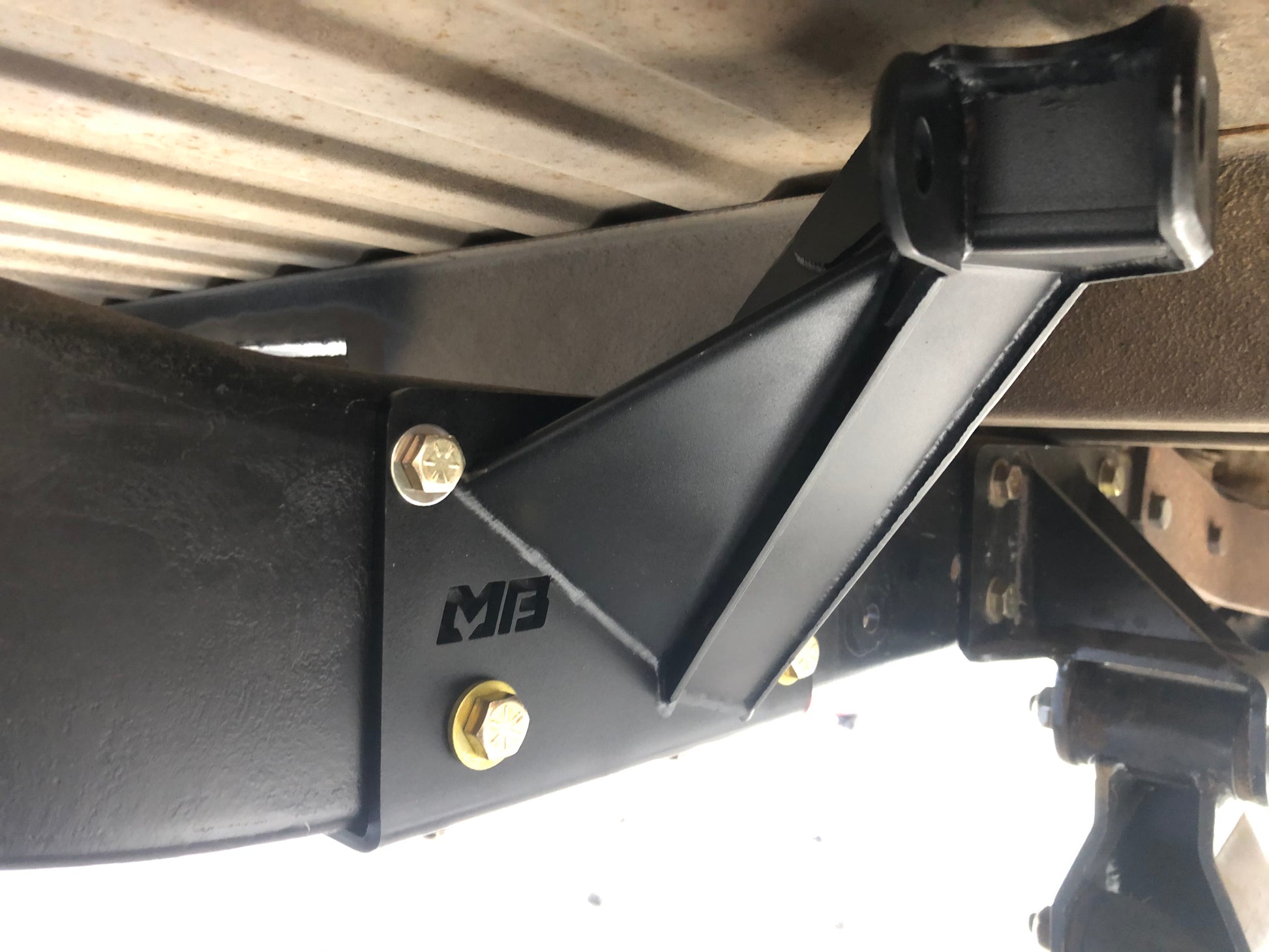

Stealth Rear Shock Mount

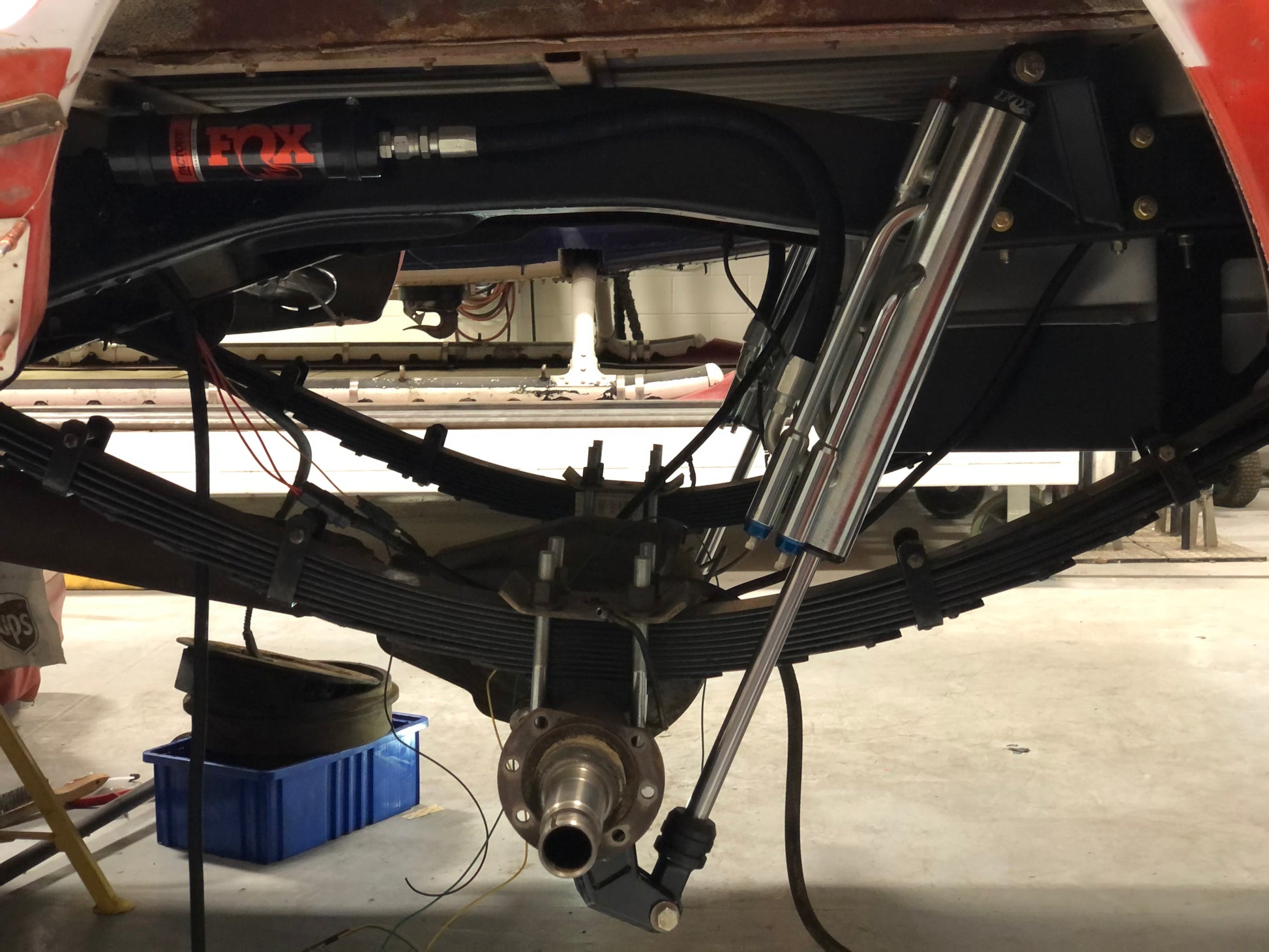

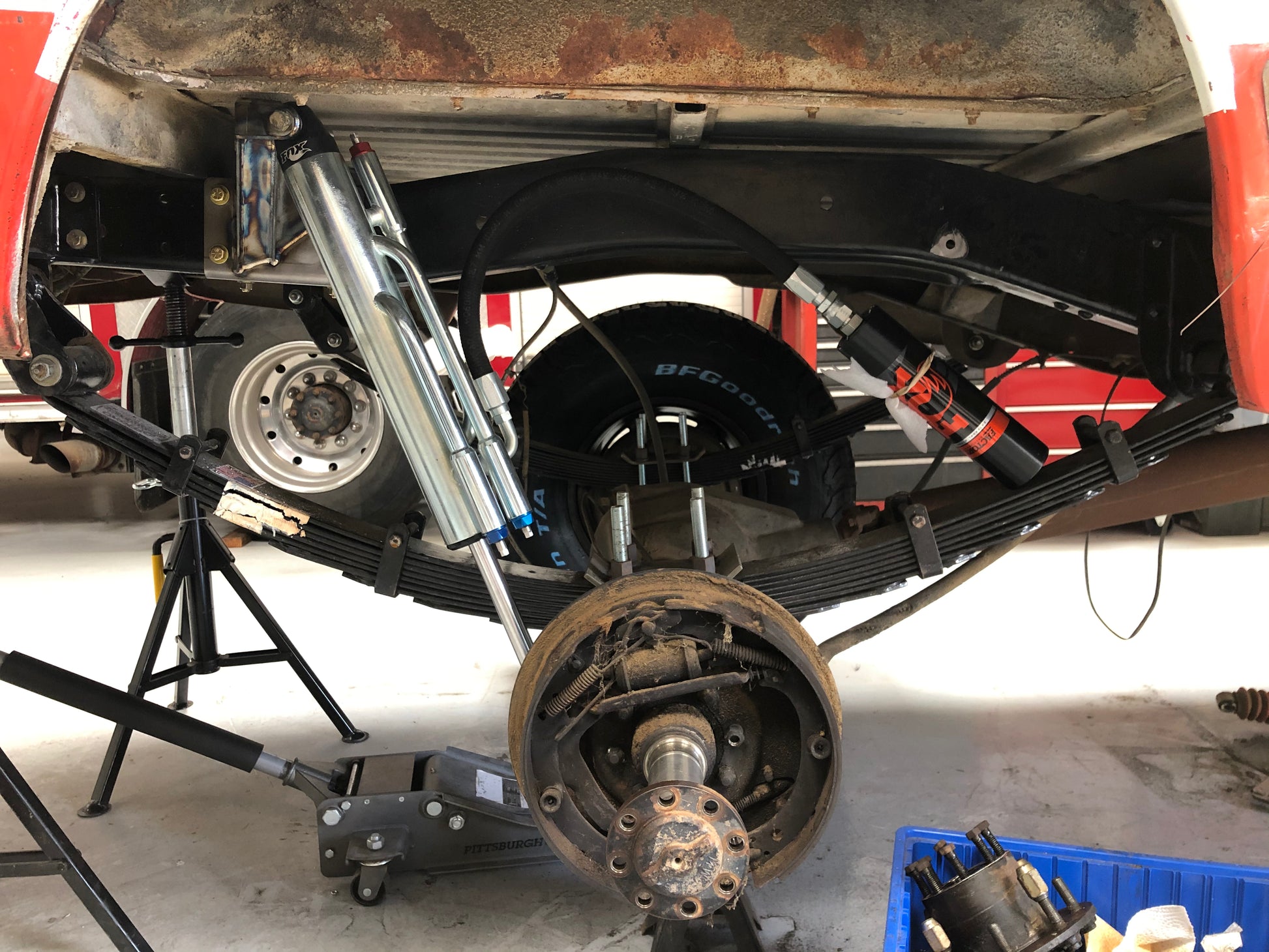

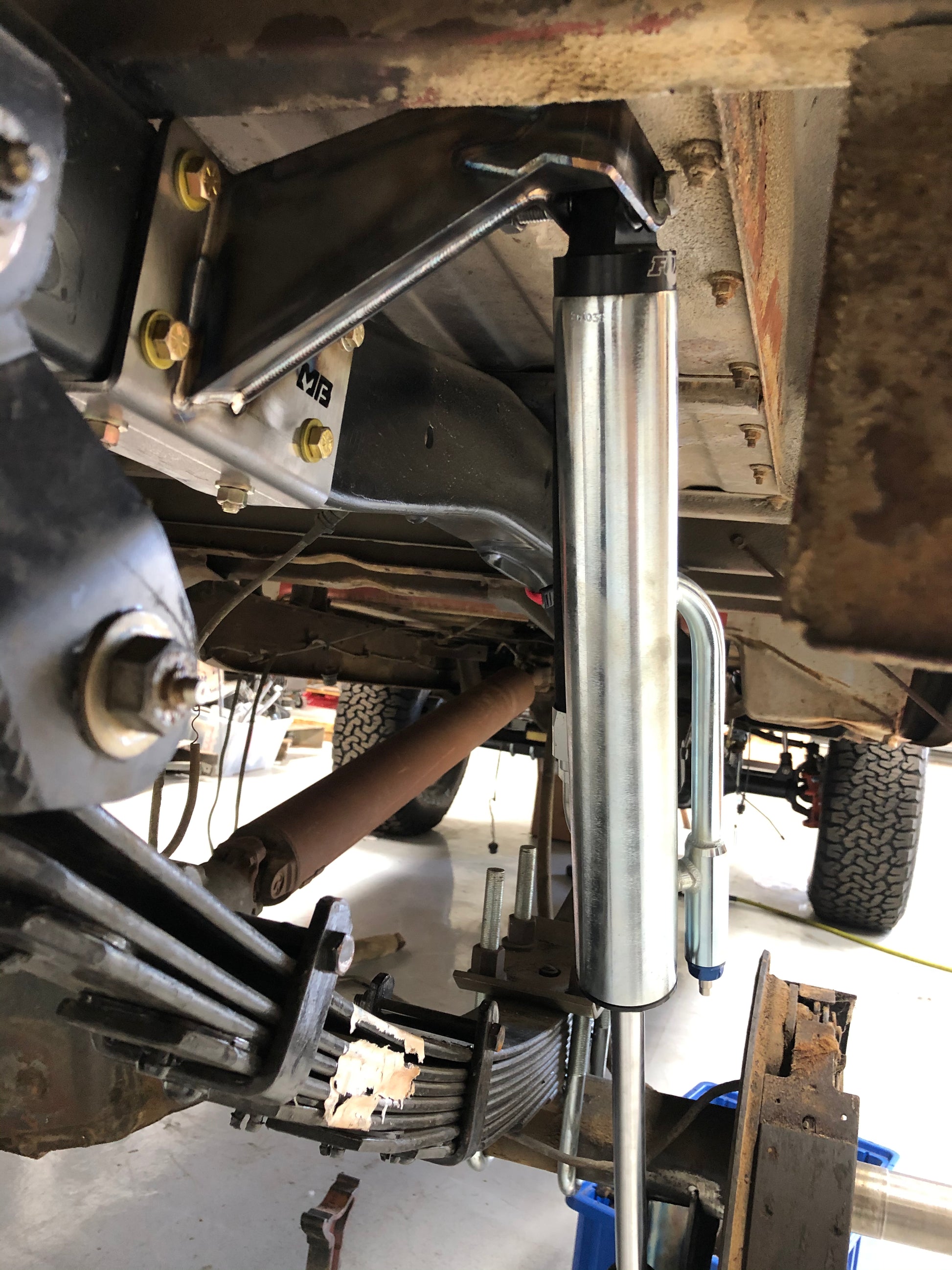

These bolt on shock mounts were designed to fit a larger shock outboard of the frame rail for improved dampening and stability, without the need to cut through the bed floor. This kit includes grade 8 hardware for install.

Originally designed around the following parameters:

67-72 GM 4x4

3-5” lift

10-12” stroke shocks no larger than 2.5” diameter.

Shocks positioned aft-axle

What's Included:

Driver and Passenger side shock mounts

Installation Hardware

Driver and Passenger Side Lower Shock Mounts

*This is an advanced installation which will require welding and angle calculations to prevent unwanted rubbing. If you have any questions please contact us!

**All shock mounts are made to order and have 3 week lead time from time of order.**
